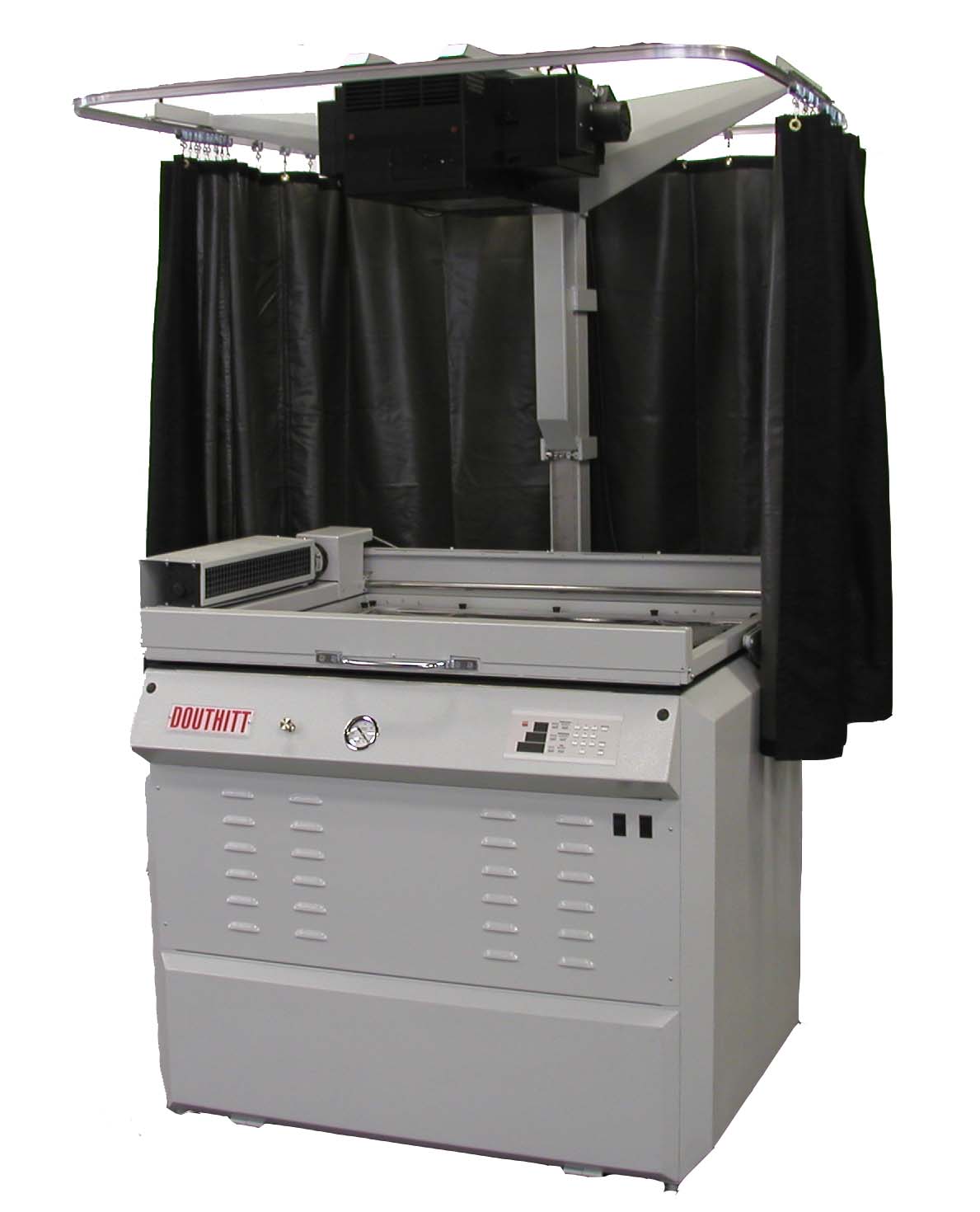

DOUTHITT FLEXOGRAPHIC PLATEMAKER

HIGH DEFINITION MODEL DCOPF

High Wattage Point Light Unit with Automated Diffusion Filter





OPTIONAL POST EXPOSE / DETACK

Unit features optional dual UV-A and UV-C Light Banks for Post Exposure and Detack. Light Banks are controlled by separate timers and can operate at the same time or independently. Plates are loaded with convenient drawer with roller bearings and safety interlock switch. Visual Indicators are provided to signal when bulbs are not working.

Higher Resolution and Less Dot Gain


FEATURES:

(1) Complete Olite AL83 Tri-Level 8000 Watt Printing Lamp Assembly with Heat Exhaust System.

(2) Motorized Diffusion Filter for controlling exact dot/shoulder specification.

(3) Automated controls simplify the operation for multiple exposure needs. Standard with 31 channels of memory and battery back up.

(4) Loads on Alumnum Platen with mylar vacuum blanket and crossflow fan for cooling surface.

(5) Opaque curtain assembly to eliminate light spillage. Fully fire retardant and OSHA approved material.

(6) Printing Lamp can be raised and lowered by means of counterbalanced weight concealed in vertical post.

(7) Finger Tip Control of glass frame is achieved by exclusive patented spring and fulcrum system (clamps automatically).

(8) Heavy Duty Vacuum Pump and Motor.

(9) All heavy gauge steel welded construction.
